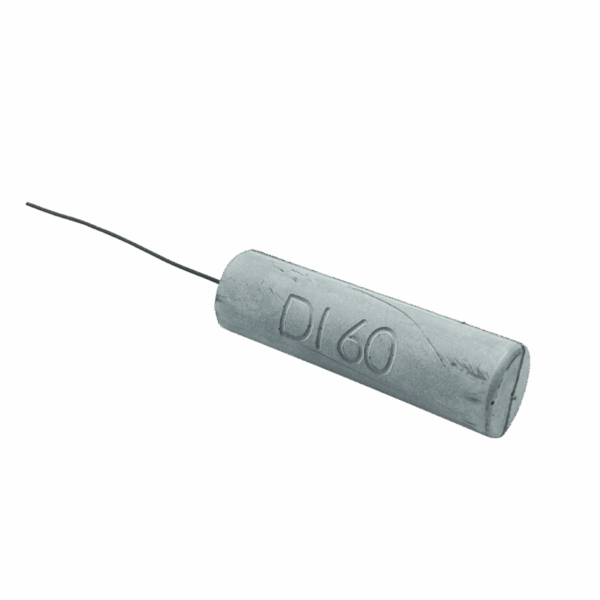

Galvex DI 60 & DI 100 – Drilled In Anodes
Hybrid activated zinc sacrificial anodes imbedded in an ion-conductive auto moistening coating pre-embededded in a conductive silicate based mortar.
Quantity box: per 20pc
Pricing per pc
Price range: € 26,50 through € 28,50
The Galvex DI 60 – DI 100 hybrid anodes are based on a composition of a specially designed zinc core coated with a patented ion-conductive self-moistening overlay paste keeping the anodes active during their entire service life and subsequently pre-embedded in a conductive “hybrid” silicate based mortar.

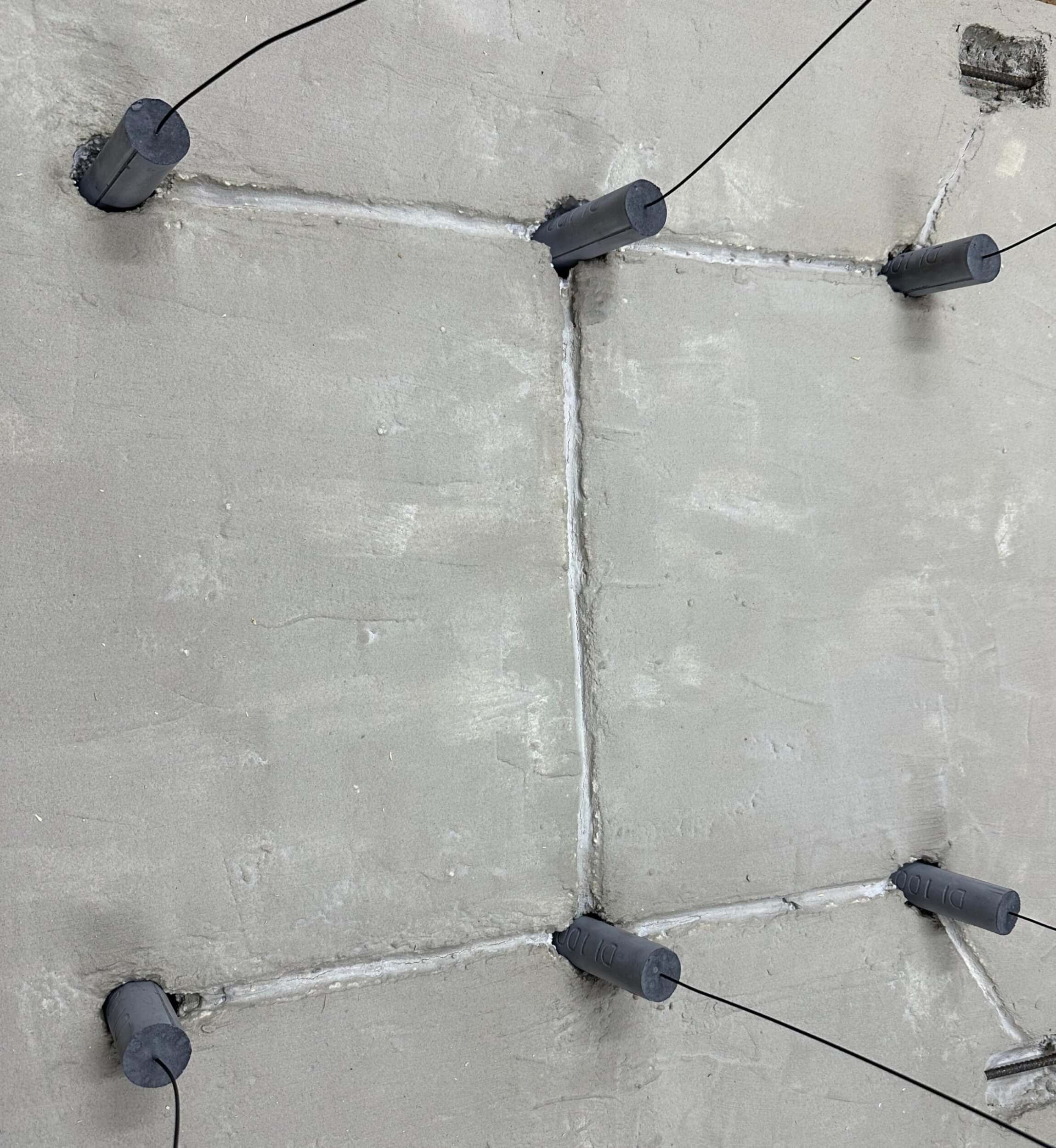

- specifically designed for application in pre-drilled holes
- can be secured in pre-drilled holes with a standard repair mortar
- suitable for use with concrete patch repair
- applicable for concrete slabs and floorings
- ideal for bridge decks, beam supports, and columns
- perfect for balcony facings and concrete façades
Additional information
| Type | DI 60, DI 100 |
|---|---|
| Quantity packaging | Packaging box per 20pc |
| Volume discount | 5% : 5 – 15 boxes |
| Dimensions | DI 60: ø 35 x 130 mm |
| Zinc weight | DI 60: 60g |
| Tariff nr. | DI 60: 7905 00 00 |
Technical Data Sheet:
CorrPRE-TDS-DI-Galvex-60100-Hybrid.pdf
Installation Guidelines:
CorrPRE-Installation-Guidelines-Galvex-DI-Hybrid.pdf
