CorrAnode

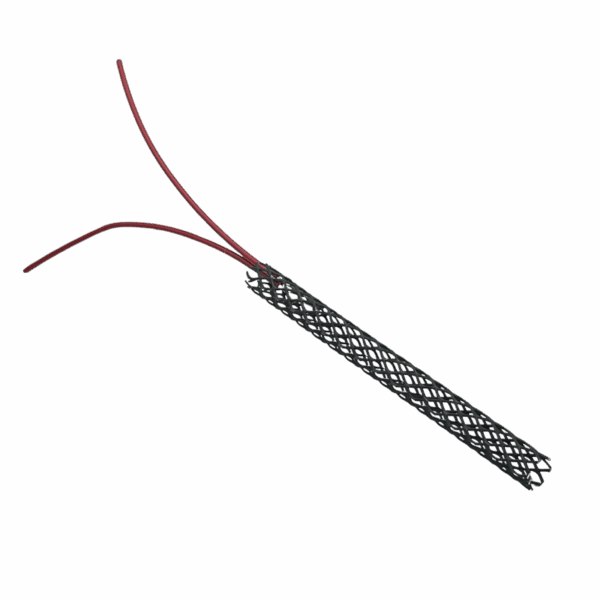

Compact MMO-titanium anode for predrilled holes. Durable titanium core with MMO coating. Use with silicate or mineral grout as advised.
€ 33,00
CorrAnode is a discrete ICCP anode specifically designed for giving electro chemical protection, known as impressed current cathodic protection (ICCP), for the prevention of corrosion of the concrete steel reinforcement according the international standard ISO/EN 1 2696. The current required for cathodic protection is provided by a DC power source supplied through a anode feeder cable.
Several typical examples of applications:
• Bridge deck or beam supports and columns
• Large parking garages
• Cooling towers with large surface area’s

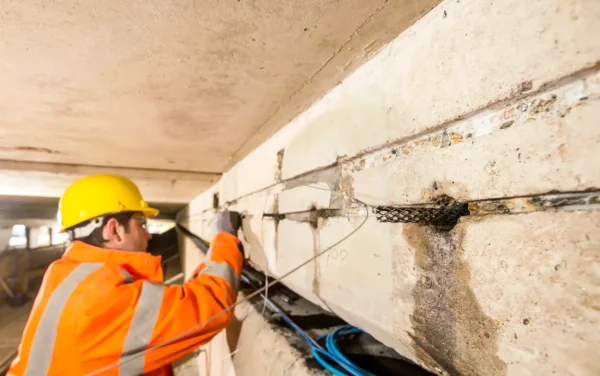

• Zones of newly casted concrete adhered onto an existing structure
Additional information
| Length | Max length of 1000 mm |
|---|---|
| Diameter | 12/14mm |
| Total expanded anode surface area | 45 cm² |
| Expected design life | 30 years at 5 mA per 10 cm anode length |
Technical Datasheet:
CorrAnode
